Product description

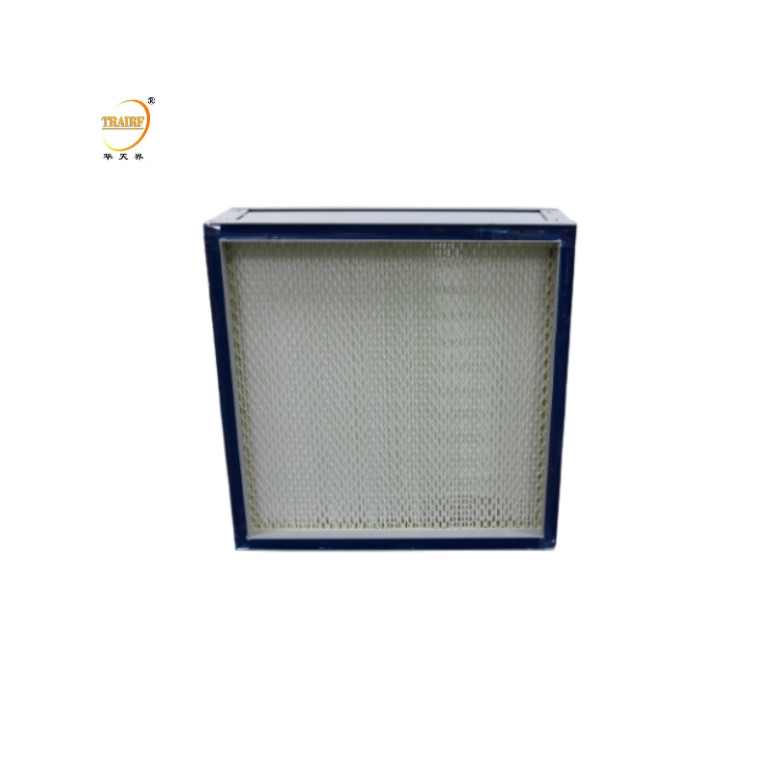

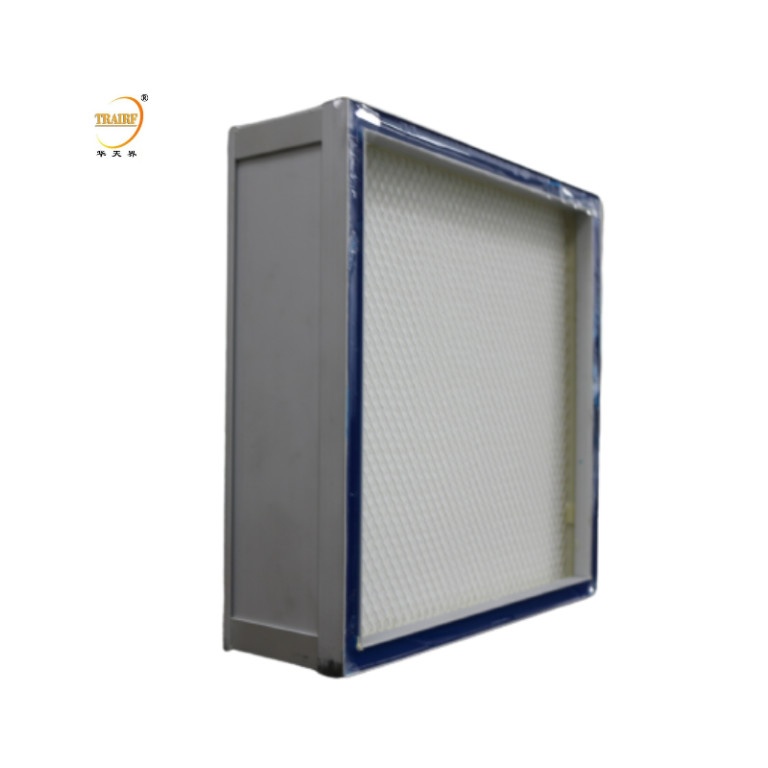

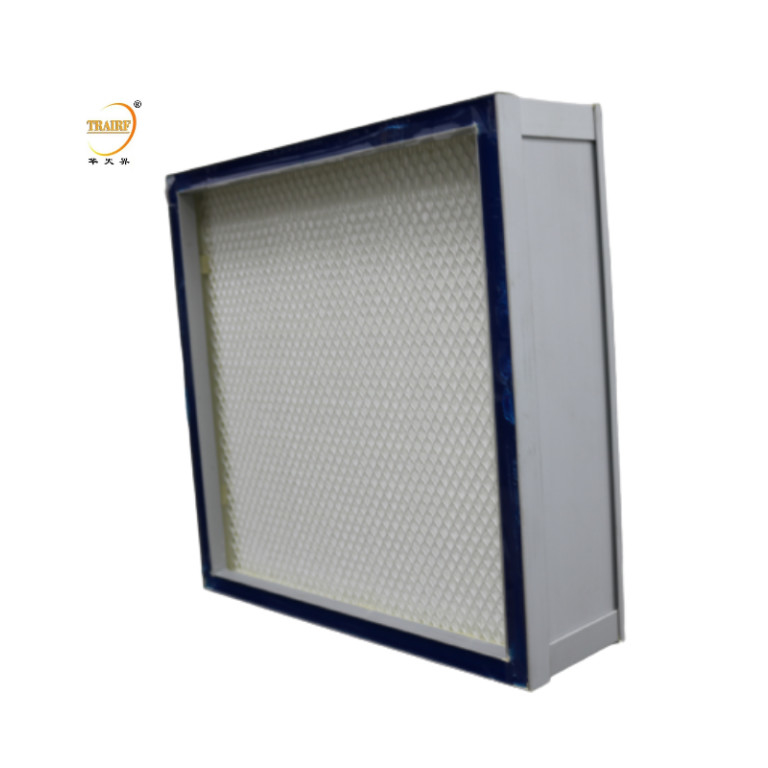

Gel Seal Hepa Air Filter used micro fiberglass material as filter media, both air inlet side and air outlet side with melded wire protect mesh. It is mainly used for high efficiency filtration of all kinds of clean factories which required vertical air supply. It's with long service life because it owns large filtration area and low resistance.
Feasures
1.High Quality hepa filter is the finally filtration in clean room that used for particles more than 0.3um.
2.Large dust holding capacity ,the filter media adopts the ultra-thin glass fiber, the hot melt glue spacing each pleats in
regular so that achieve high dust volume.
3.Frame: stainless steel, aluminum alloy, galvanized plate
4.Filter media: Micro Glassfiber
5.Sealant around the media prevent the air filter is without any air leaking.
6.Hepa filter for pharmaceuticals with metal screens,prevent the media is without any damage.
7.Light weight for easy installation.
Product parameters
| Model | Outside dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency(class) |
| TR-CYCGX-1 | 356*356*93 | 500 | ≤220 | ≥99.95 |
| TR-CYCGX-2 | 520*520*93 | 1000 | ≤220 | ≥99.95 |
| TR-CYCGX-3 | 666*666*93 | 1500 | ≤220 | ≥99.95 |
| TR-DYCGX-4 | 320*320*96 | 500 | ≤220 | ≥99.95 |
| TR-DYCGX-5 | 484*484*96 | 1000 | ≤220 | ≥99.95 |
| TR-DYCGX-6 | 630*630*96 | 1500 | ≤220 | ≥99.95 |
* Customizable size
Cleanliness level
This is similar to the normal HEPA Filter, which achieves an efficiency rating of H13 99.97% @ 0.3 micron and H14 99.995% @ 0.3 micron. Different efficiencies can be achieved using different fiberglass materials. Each High temperature HEPA filter is tested by smoke to ensure that the filter is not leaking. Packed in plastic bags to prevent long-term storage from being oxidized. A single filter is packed in carton and then secured with wooden boxes to ensure safety during transport.
