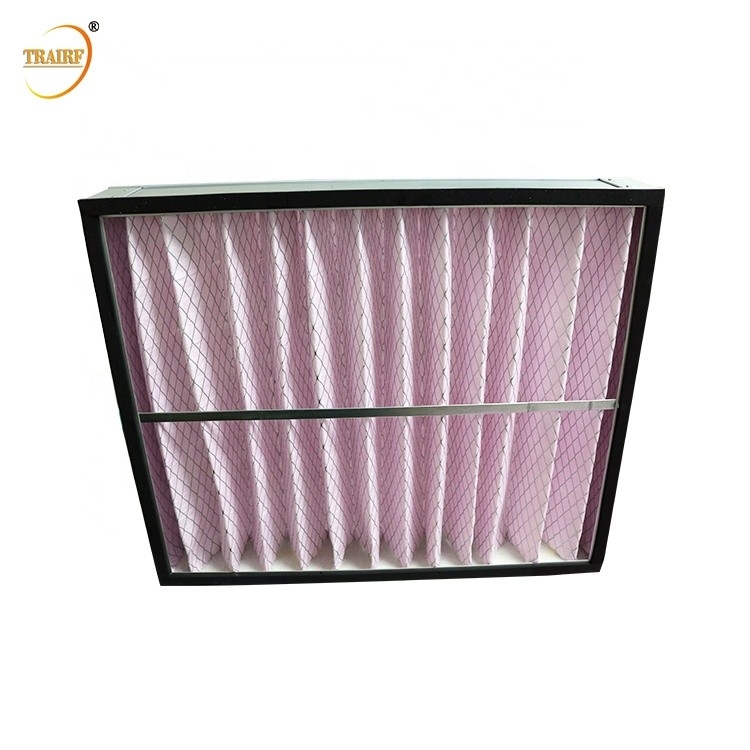

Synthetic fiber filter F7 is made of high quality polyester synthetic fiber or filter cotton. It has advantages of the large dust holding capacity, low pressure loss in the initial period and lager air flow,aluminum mesh grease filter.
1.The moisture-proof: 100%;
2.Heat resistance: 80℃;
3.The rank of the filtration:G2,G3,G4
4.pleated filter media,Purifier Air Filter M13
|
Material and Performance |
|
|
Product Name |
F7 Air Cleaner Filter |
|
Frame Material |
Galvanized Frame / Aluminum Alloy |
|
Filter medium |
Synthetic Fiber / coarse cotton filter |
|
Face Guard |
Galvanization net,aluminum nets |
|
Max. humidity |
80%RH |
|
Max. temperature |
80°C |
SPECIFICATIONS:
|
Model |
Dimension |
Rate air |
Initial Resistance |
Efficiency |
|
(W*H*D)MM |
(m3/h) |
(pa) |
(Class) |
|
|
TR-CX-Z1 |
295*295*46 |
800 |
25 Pa |
G2 G3 G4
|
|
TR-CX-Z2 |
495*495*46 |
1300 |
||
|
TR-CX-Z3 |
495*495*46 |
2200 |
||
|
TR-CX-Z4 |
595*295*46 |
1600 |
||
|
TR-CX-Z5 |
595*495*46 |
2700 |
||
|
TR-CX-Z6 |
595*595*46 |
3200 |
* CUSTOMIZED SIZE IS AVAILABLE.
Features:
1. High dust loading capacity
2. Low pressure drop
3. Large air flow
4. Efficiency: F7/MERV13,High Quality Air Filter Filtration
5. Low cost ,washable pre filter
6.Easy installation
7.Long service life
8.Customization is available.
Application:
1. Clean rooms (suitable for use in multilayer filter filtration system)
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Biohazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.
