Production Description:

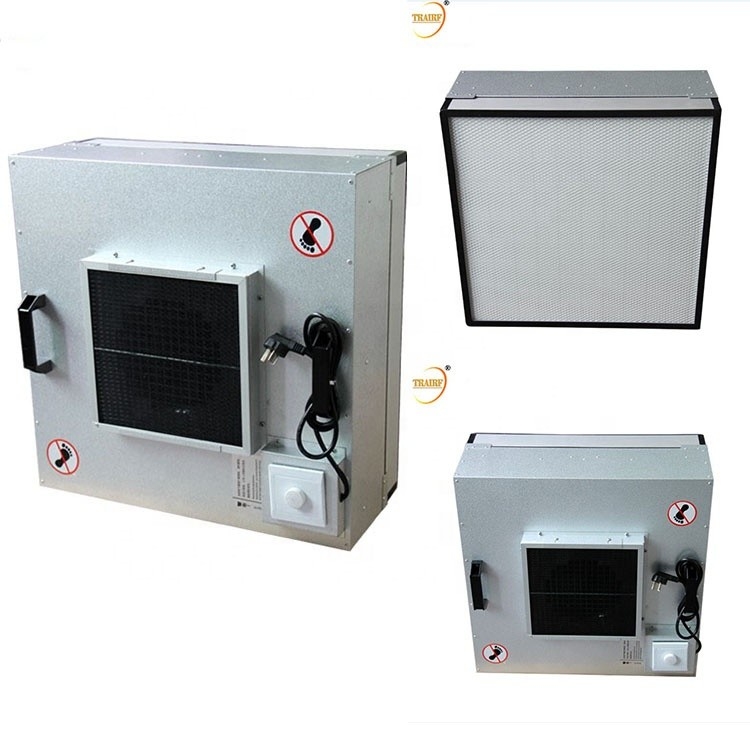

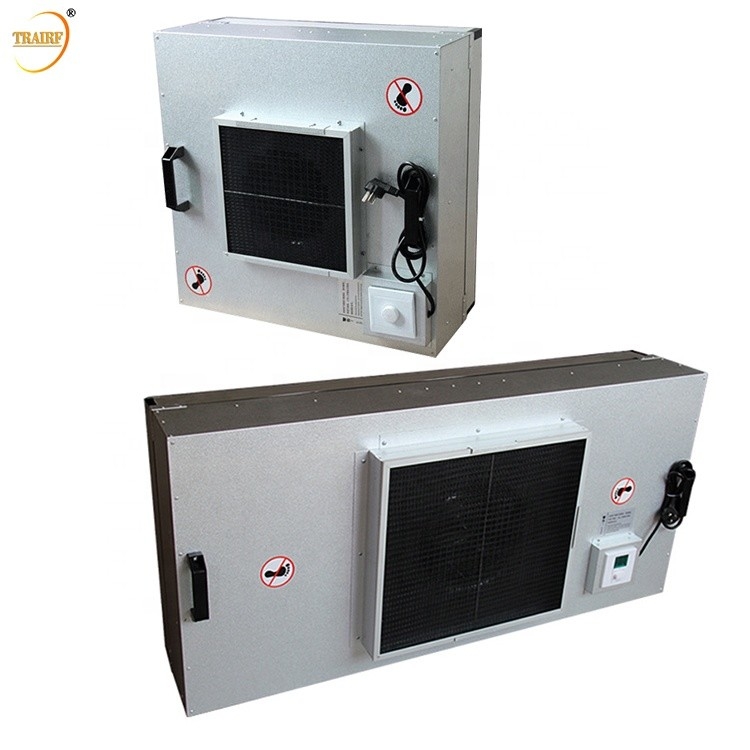

Fan Filter Unit (FFU) is a of type of motorized air filtering equipment. It is used to supply purified air to clean-rooms, laboratories, medical facilities or micro environments by removing harmful airborne particles from recirculating air. The units are installed within the system's ceiling or floor grid. Large clean-rooms require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.
Specification:
1.Dimension: 570*570*340mm
2.Air Filter Size: 570*570*69
3.Air Volume: 700-1800 m³/h
4.External Static Pressure: 98Pa
5.Power Supply Standard: 220V
6.Filter Efficiency:≥99.9995% @≥0.3μm
7.Shock: ≤0.4m/s2
8.Noise:≤55Db(a)
9.Main body material: stainless steel, aluminum alloy, galvanized plate
|
Model Parameters |
TR-FFU-F1 |
TR-FFU-F2 |
TR-FFU-F3 |
TR-FFU-F4 |
|||
|
TR-FFU-F1X |
TR-FFU-F2X |
TR-FFU-F3X |
TR-FFU-F4X |
||||
|
Nominal volume (m³/h) |
2000 |
1800 |
1000 |
900 |
|||
|
NoiseDb(A) |
54~60 |
||||||
|
Hepa filter efficiency |
≥99.99% ~ 99.9995%( @≥0.3μm) |
||||||
|
Power |
AC220V±10%,1φ,50HZ±2HZ |
||||||
|
The input power (W) |
180 |
180 |
145 |
75 |
|||
|
Envelop dimensions (mm)L*W*H |
1220*610*390 |
1170*570*340 |
610*610*390 |
570*570*340 |
|||
|
Hepa filter specifications (mm) |
1220*610*69 |
1170*570*69 |
610*610*69 |
570*570*69 |
|||
|
Coarse efficiency filters specifications (mm) |
495*495*21 |
495*495*21 |
395*395*21 |
395*395*21 |
|||
Customized Service is Available
