Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us
Medium efficiency air filter is mainly used in central air conditioning and central air supply system. It can be used for the medium filtration of the air conditioning system to protect the next level of the system filter and the system itself. In the place where the requirements of air purification and cleanliness are not strict, the air treated by the medium effect air filter can be directly sent to the user.

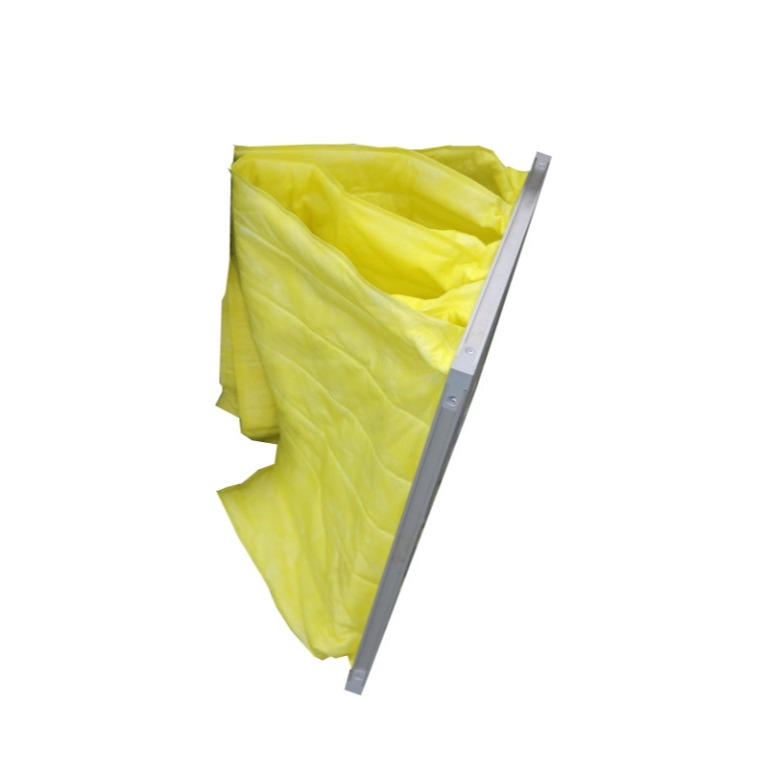

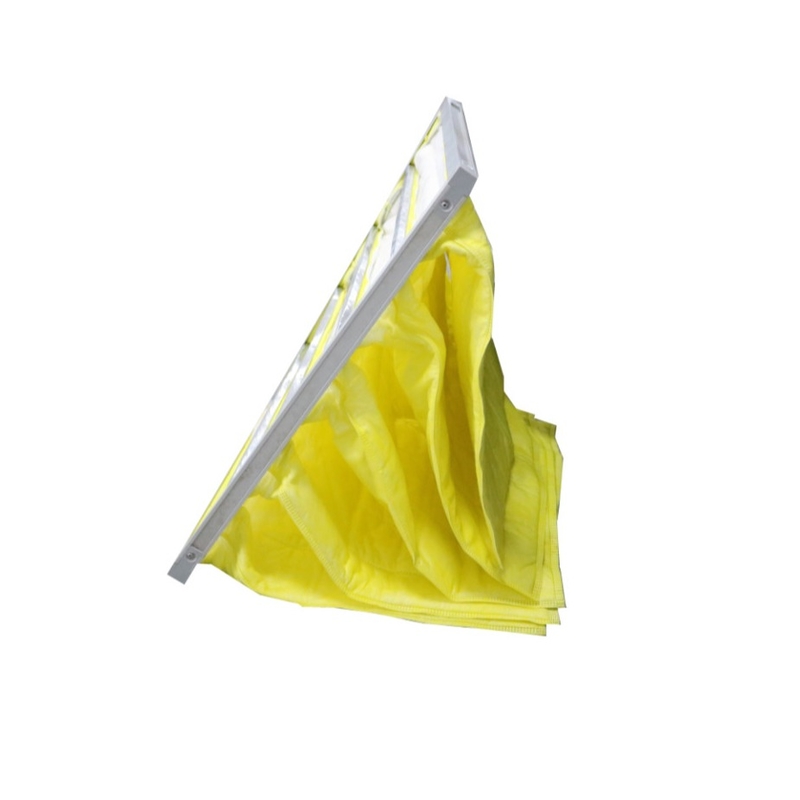

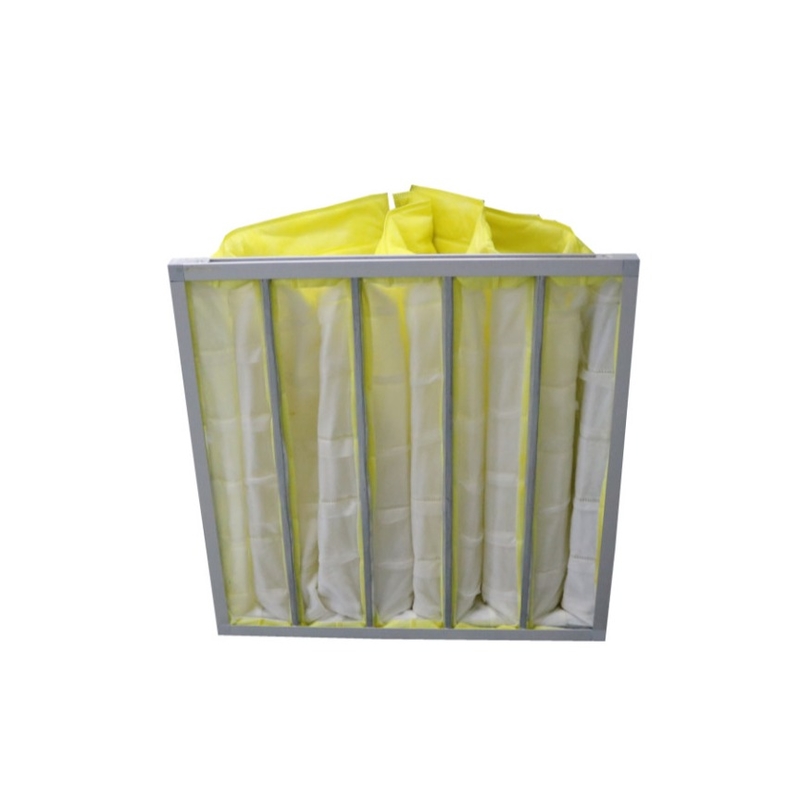

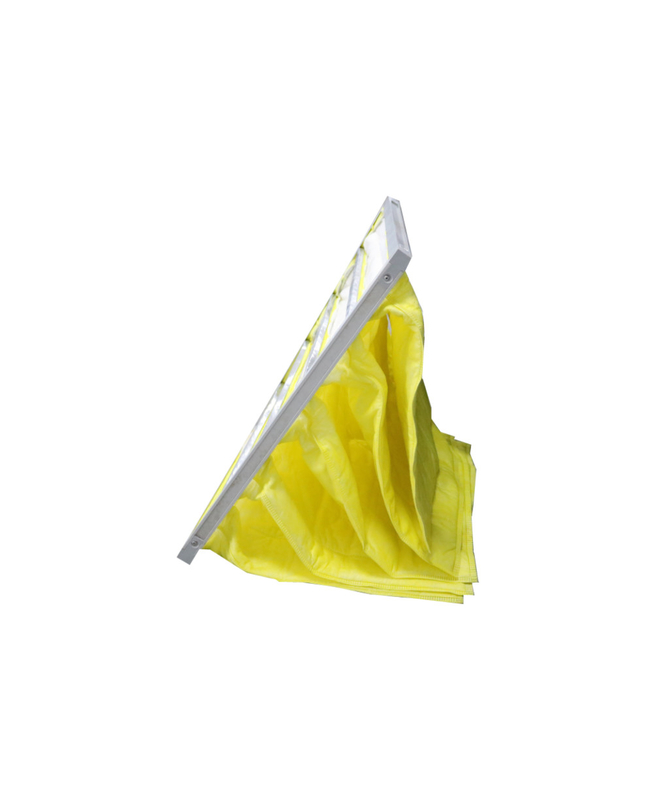

The filter bag structure
Each filter bag is supported by a single fixed grid in the u-shaped frame, the bag with the adjacent supporting gratings mechanical fixed together, ensure that solid structure, prevent damage and use process. Combined closely with the support and grille, not only prevent the leakage between the bag, and ensure the stable structure, reliable in performance
|
item |
value |
|
Applicable Industries |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Warranty of core components |
Not Available |
|
Core Components |
media |
|
Condition |
New |
|
Efficiency |
F9 |
|
Construction |
Bag Filter |
|
Porosity |
0.5um |
|
Place of Origin |
China |
|
Province |
Sichuan |
|
Brand Name |
TRAIRF |
|
Dimension(L*W*H) |
Customizable |
|
Weight |
1KG |
|
Warranty |
Unavailable |
|
Product name |
Air Conditioning Bag Filter fiberglass air filter for industry ventilation system |
|
Frame |
Galvanized Steel Frame |
|
Filter Media |
Synthetic fiber |
|
Efficiency |
F9 |
|
Airflow |
1000-3200CMB/ H |
|
Dust Holding Capacity |
200-2400 g/㎡ |
|
Initial Pressure |
50 Pa |
|
Work Temperature |
80 ℃ |
|
Application |
Air conditioning system |
|
OEM |
Available |
Factors Affecting Bag Medium Effect Air Filter
There are two resistance affecting the filter, the first is wind speed, the greater the wind speed filter resistance; The second is the degree of air pollution, the more pollution, the greater the resistance. Under the condition that the wind speed remains unchanged, the size of the resistance can basically reflect the amount of dust in the filter.
