Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us
Application:

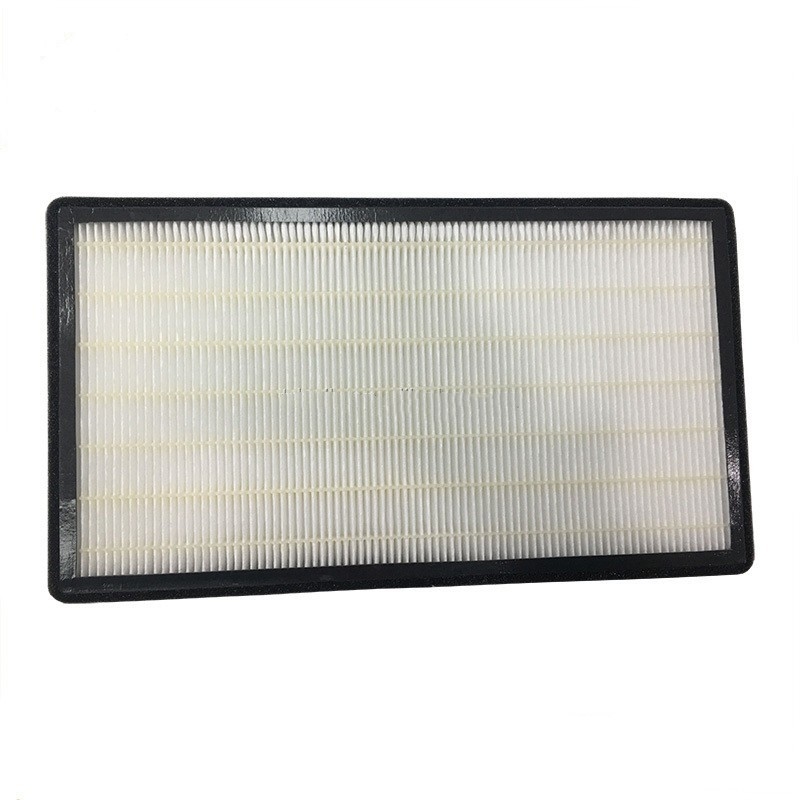

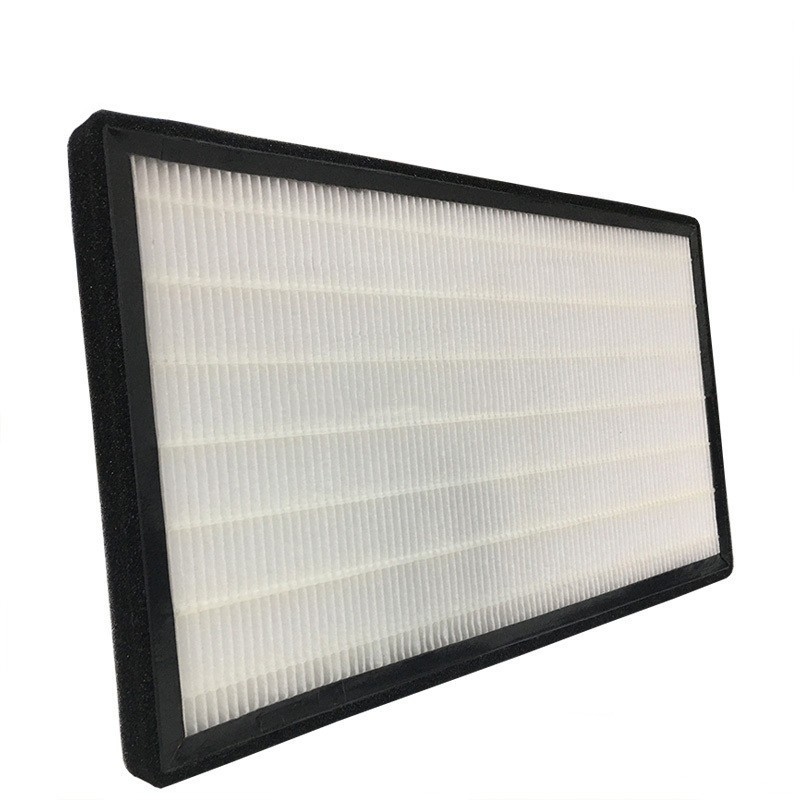

HEPA filter is widely used in the terminal filtration of the civil or industrial cleaner places requiring a higher degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.
Specifications:
1.Low pressure drop
2.Large dust holding capacity
3.Aluminum/GI/wooden frame type
4.Efficiency:99.99%
Feature:
1.Unique seamless sealing technology, sealing effect better, more durable, not easy to leak
2.The double sides of filter material are with protecting metal wire net
3.Can provide 50 mm, 69 mm, 90 mm and other various thickness
4.By laser scanning count MPPS efficiency:95%-99.999995%(EN1882)
5.Filtration grade:H11-H14,U15,U16(EN1882)
Materials:
| Frame | Extruded aluminium,stainless steel, aluminum alloy, galvanized plate |
| Filter Media | Glassfiber |
| Protect Net | Aluminium mesh |
| Sealant | Polyurethane |
| Gasket | EVA |
Parameters:
|
Model |
Dimensions(mm) |
Airflow(m³/h) |
Initial Resistance(Pa) |
Efficiency(%) |
Dust Capacity(g) |
|
TR-WGB-1 |
610*610*50 |
700 |
≤220 or ≤140 HV |
≥ 99.99 |
450 |
|
TR-WGB-2 |
915*610*50 |
1000 |
≤220 or ≤140 HV |
≥ 99.99 |
680 |
|
TR-WGB-3 |
1220*610*50 |
1400 |
≤220 or ≤140 HV |
≥ 99.99 |
900 |
|
TR-WGB-4 |
610*610*69 |
1000 |
≤220 or ≤140 HV |
≥ 99.99 |
560 |
|
TR-WGB-5 |
915*610*69 |
1500 |
≤220 or ≤140 HV |
≥ 99.99 |
840 |
|
TR-WGB-6 |
1220*610*69 |
2000 |
≤220 or ≤140 HV |
≥ 99.99 |
1120 |
|
TR-WGB-7 |
610*610*80 |
120 |
≤220 or ≤140 HV |
≥ 99.99 |
650 |
|
TR-WGB-8 |
610*610*90 |
1400 |
≤220 or ≤140 HV |
≥ 99.99 |
750 |
|
TR-WGB-9 |
610*610*100 |
1600 |
≤220 or ≤140 HV |
≥ 99.99 |
850 |
|
TR-WGB-10 |
1170*570*69 |
1800 |
≤220 or ≤140 HV |
≥ 99.99 |
1000 |
|
TR-WGB-11 |
1170*570*80 |
2200 |
≤220 or ≤140 HV |
≥ 99.99 |
1250 |
|
TR-WGB-12 |
1220*610*80 |
2500 |
≤220 or ≤140 HV |
≥ 99.99 |
1300 |
|
TR-WGB-13 |
1220*610*90 |
2800 |
≤220 or ≤140 HV |
≥ 99.99 |
1500 |
|
TR-WGB-14 |
1220*610*100 |
3200 |
≤220 or ≤140 HV |
≥ 99.99 |
1700 |
* Customizable Size
Delivery
There are four type shipping ways you can choose:
1. By Sea.
2.By Air.
3.By Express( DHL, TNT, FedEx, UPS, EMS)
4.By Train (China Railway Express, the line starts in Chengdu and travels through Kazakhstan, Russia and Belarus to end in Lodz )
Certificates|
EVA |
