Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Contact Us
This activated carbon filter allows the home air purifier or Air Scrubber to capture a wide variety of volatile organic compounds (VOCs), including soot and smoke, food odors, fumes from paint and paint thinners, sewer odors, and many other compounds. Each filter measures 16" x 16" x 1",or other customized size.
Description

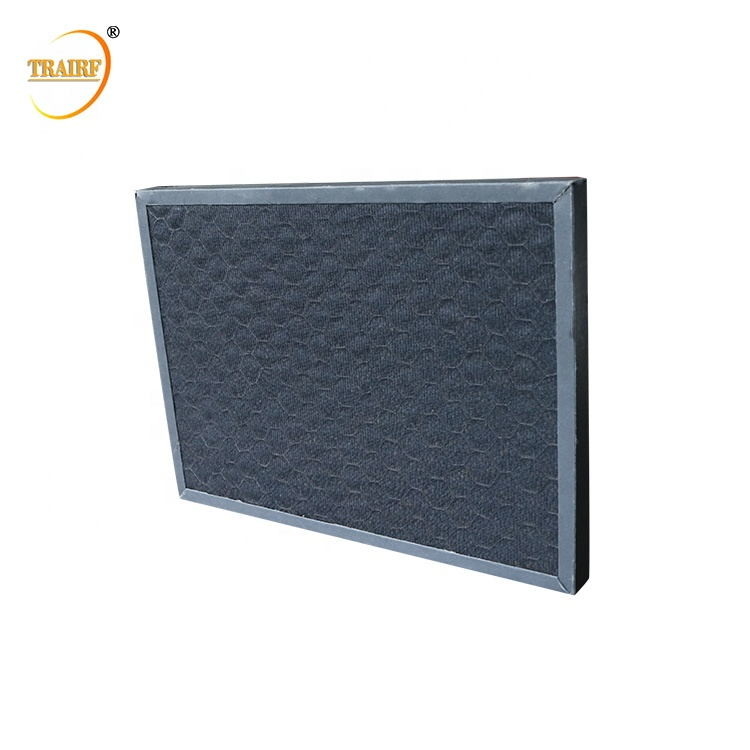

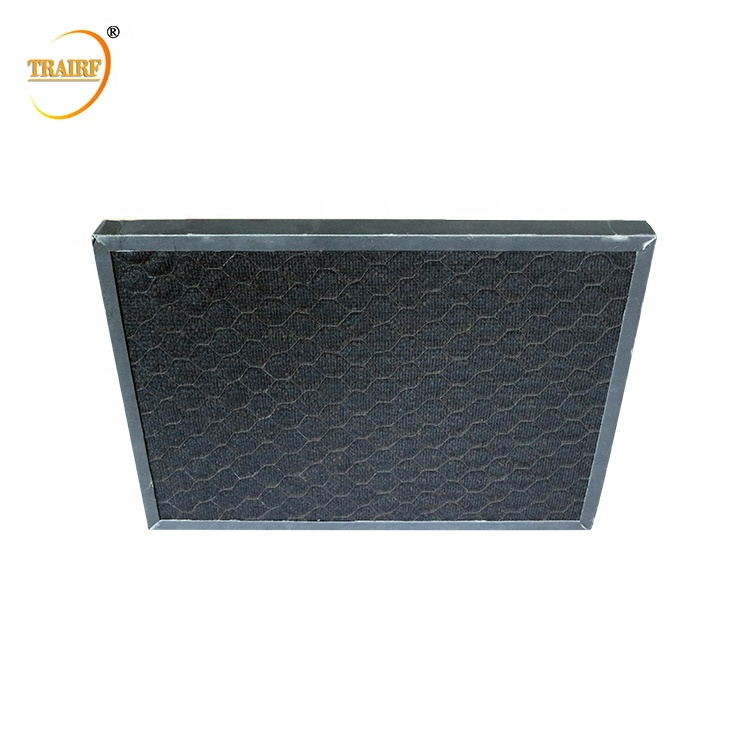

Panel Honeycomb Activated Carbon Filter widely used for Air Purifier with active carbon filter, filter media in honeycomb type and cardboard , metal frame are available for your choose.
Features:
1. carbon air filters are with high performance, good appearance. ISO/ROHS/SGS approval.
2. carbon activated filters remove formaldehyde, odors and chemicals in the air, above 99% removal rate for formaldehyde tested in 30m³ chamber per hour.
3. Carbon particles with power, cylinder and grain shape for choice, can be customized.
Advantages:
1. Remove odors
2. Bactericidal Deodorant
3. Low resistance high efficiency
4. Purify dust, smoke, PM2.5, formaldehyde
Application:
Suitable for air purifier, air conditioner, air fresh system,air conditioning system,hvac system,ahu,ventilation system,home air filtration system , etc.
| Model | Outside Dimensions(mm) | Rated air flow(m³/h) | Initial Resistance(Pa) | Efficiency(class) | Model of filter media |
| TR-HXT-1 | 295×295×46mm 12”×12” ×13/4” |
800m³/h | 40Pa | ≥80% Adsorption efficiency |
Black belt activated carbon filter cotton Activated cabron particles |
| TR-HXT-2 | 495×295×46mm 20”×12” ×13/4” |
1300m³/h | |||
| TR-HXT-3 | 495×495×46mm 20”×20” ×13/4” |
2200m³/h | |||
| TR-HXT-4 | 595×295×46mm 24”×12” ×13/4” |
1600m³/h | |||
| TR-HXT-5 | 595×495×46mm 24”×20” ×13/4” |
2700m³/h | |||
| TR-HXT-6 | 595×595×46mm 24”×24” ×13/4” |
3200m³/h |
* Customizable Size
